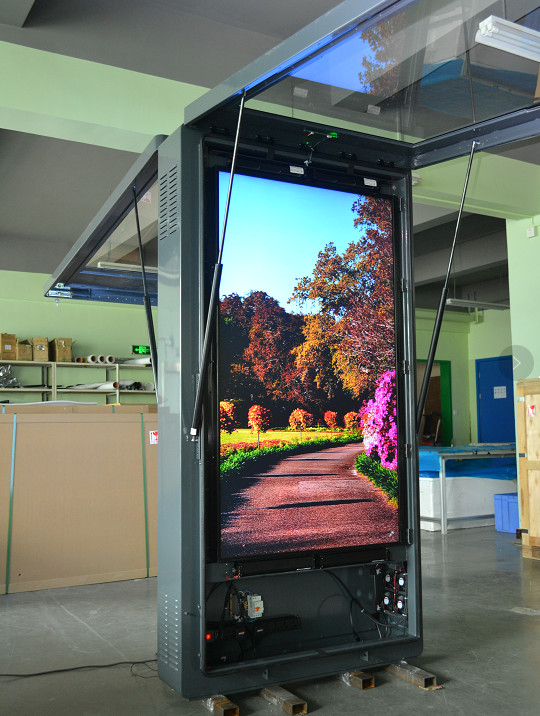

4K UHD 65" Outdoor LCD Digital Signage LCD Totem With PCAP Touch

Product Categories

Maxbright Display Media (Shenzhen) Co., Ltd.

Contact Now

Name: 4K UHD 65quot Outdoor LCD Digital Signage LCD Totem With PCAP Touch
Brand: Maxbright
Price: 1 USD

Brand Name : Maxbright

Model Number : T650EDCP

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100 sets / Month

Delivery Time : 4~5 weeks

Packaging Details : Pearl cotton shock absorption + wood case packaging

PANEL TYPE : TFT-LCD

Resolution : 3840×2160 4K UHD

Brightness : 2000-2500 cd/m2, LED Backlight Enhanced

Power Consumption : 550W(FHD)

PIXEL PITCH : 0.372(H) x 0.372(V) mm

AC INPUT : AC 100 to 240V, 50 to 60 Hz

Operating Temperature : -30℃～60℃

Display Area : 1428.5(H) x 803.52 (V)mm

Touch Screen : Projection Capacitive Touch Option

Contact Now

4K UHD 65" Outdoor LCD Digital Signage LCD Totem With PCAP Touch

	PANEL TYPE	a-Si active matrix TFT-LCD
	ACTIVE AREA	803.52 x 1428.48 mm in portrait orientation
	NATIVE RESOLUTION	3840 × 2160 RGB QWUXGA 4k
	PIXEL PITCH	0.372(H) x 0.372(V) mm
	COLOR	1.07 Billon color, 10 bits
	HORIZONTAL FREQ.	244KHz ~ 280KHz
	VERTICAL FREQ.	95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
	BRIGHTNESS	2000-2500 cd/m², LED Backlight Enhanced
	CONTRAST RATIO	1400:1, Dynamic contrast ratio: 10000:1
	DIMMING	Auto-dimming by Light Sensor
	VIEWING ANGLE	89/89/89/89
	RESPONSE TIME	5msec typical
	INTERFACE	VGA, HDMI x 2
	MEDIA PLAYER	Media Player (RK3399 CPU) (option)
	REMOTE CONTROL	Support for Full OSD Features
	OPERATING VOLTAGE	AC 100 ~ 240V 60/50Hz
	POWER CONSUMPTION	430W for 2000 nits, 540W for 2500 nits
	STANDBY MODE	5 Watt or less
	ACCESSORIES	AC Power Cord, Remote Controller
		HDMI, VGA, Composite, S-Video cable x 1
	OPERATING	Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2
	(option)	128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option)
	TOUCH	10 points PCAP, or metal mesh option
	DIMENSION WEIGHT	2000(H) x 1110(W) x 260(D) mm, (without air-con) 185 Kg approx (without air-con)
		Waterproof IP65 Enclosure
	COOLING	By cooling fans controlled by MCU for outdoor
		600W air-conditioner option for harsh outdoor
	FRONT PROTECTION	3+3 AR vandal glass or 6mm AR vandal glass
	ENVIRONMENTAL OPTION	Operating Temperature -20-50^oC, Wide temp. -30-50^oC (with cool/warm air-con)
		Operating Humidity 10%-85%
		Storage Temperature -30-60^oC
		Storage Humidity 5%-90%
	WARRANTY	One Year, extended 2 or 3 years available

4K UHD 65" Outdoor LCD Digital Signage LCD Totem With PCAP Touch
