Maxbright 65" High Bright 4K UHD Outdoor Digital Signage Totem Model : T650EDCP-4K
LED Array Backlight Enhanced
Model: T650EDCP-4K
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits, Sunlight Viewable
3840 x 2160 QWUXGA Max. 4K Resolution
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player box or mini Ind. PC for content playback
Waterproof IP65 enclosure
Application Of Outdoor Digital Signage Totem
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
| |
PANEL TYPE |
a-Si active matrix TFT-LCD |
|
| |
ACTIVE AREA |
803.52 x 1428.48 mm in portrait orientation |
|
| |
NATIVE RESOLUTION |
2160 x 3840 RGB |
|
| |
PIXEL PITCH |
0.372(H) x 0.372(V) mm |
|
| |
COLOR |
1.07 Billon color, 10 bits |
|
| |
HORIZONTAL FREQ. |
244KHz ~ 280KHz |
|
| |
VERTICAL FREQ. |
95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
|
| |
BRIGHTNESS |
2000-2500 cd/m2, LED Backlight Enhanced |
|
| |
CONTRAST RATIO |
1400:1, Dynamic contrast ratio: 10000:1 |
|
| |
DIMMING |
Auto-dimming by Light Sensor |
|
| |
VIEWING ANGLE |
89/89/89/89 |
|
| |
RESPONSE TIME |
5msec typical |
|
| |
INTERFACE |
VGA, HDMI x 2 |
|
| |
MEDIA PLAYER |
Media Player (RK3399 CPU) (option) |
|
| |
REMOTE CONTROL |
Support for Full OSD Features |
|
| |
OPERATING VOLTAGE |
AC 100 ~ 240V 60/50Hz |
|
| |
POWER CONSUMPTION |
430W for 2000 nits, 540W for 2500 nits |
|
| |
STANDBY MODE |
5 Watt or less |
|
| |
ACCESSORIES |
AC Power Cord, Remote Controller |
|
| |
|
HDMI, VGA, Composite, S-Video cable x 1 |
|
| |
OPERATING |
Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2 |
|
| |
(option) |
128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option) |
|
| |
TOUCH |
10 points PCAP, or metal mesh or Nano option |
|
| |
DIMENSION
WEIGHT
|
2000(H) x 1110(W) x 260(D) mm, (without air-con)
185 Kg approx (without air-con)
|
|
| |
|
Waterproof IP65 Enclosure |
|
| |
COOLING |
By cooling fans controlled by MCU for outdoor |
|
| |
|
600W air-conditioner option for harsh outdoor |
|
| |
FRONT PROTECTION |
3+3 AR vandal glass or 6mm AR vandal glass |
|
| |
ENVIRONMENTAL
OPTION
|
Operating Temperature -20-50oC,
Wide temp. -30-50oC (with cool/warm air-con)
|
|
| |
|
Operating Humidity 10%-85% |
|
| |
|
Storage Temperature -30-60oC |
|
| |
|
Storage Humidity 5%-90% |
|
| |
WARRANTY |
One Year, extended 2 or 3 years available |
|
Product Tags:
|
|

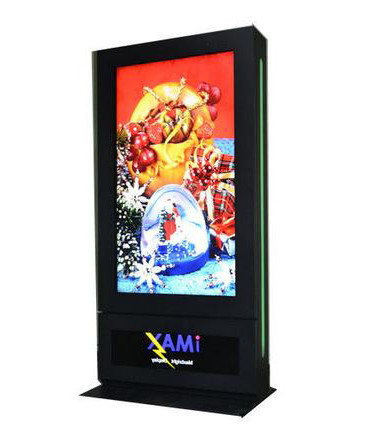

2500 nits Outdoor Digital Signage Totem 65 inch Waterproof IP65 Images
|
